We stock an array of Parker F1 Series Motors at in our 18,000 sq/ft factory at IHS UK LTD.
Parker F11 hydraulic pump series has operating pressures up to 420 bar (6,100 psi) and have high selfpriming speeds. The F11 is a robust design pump, and can be used in numerous applications in both open and closed loop circuits. Sizes from 5-19cc.
The models are as follows:
• F11-005-HU-CV-K-000-0000-00 • F11-005-LB-CV-K-000-0000-00
• F11-005-MB-CN-D-000-0000-00 • F11-005-MB-CV-K-000-0000-00
• F11-005-RB-CV-K-000-0000-00 • F11-010-HU-CV-D-000-0000-00
• F11-010-HU-CV-K-000-0000-00 • F11-010-MB-CV-D-000-0000-00
• F11-010-MB-CV-K-000-0000-00 • F11-010-RB-CV-K-000-0000-00
• F11-012-QB-SV-S-000-0000-00 • F11-012-RB-IV-D-000-0000-00
• F11-012-RB-IV-K-000-0000-00 •F11-012-SD-CV-K-000-0000-00
• F11-014-HF-IV-K-000-0000-00 • F11-014-QF-IV-D-000-0000-00
• F11-014-SB-CV-K-000-0000-00 • F11-019-HU-SV-S-000-0000-00
• F11-019-HU-TV-T-000-0000-00 • F11-019-LB-CV-K-000-0000-00
• F11-019-MB-CV-K-000-0000-00 • F11-019-MB-SV-S-000-0000-00

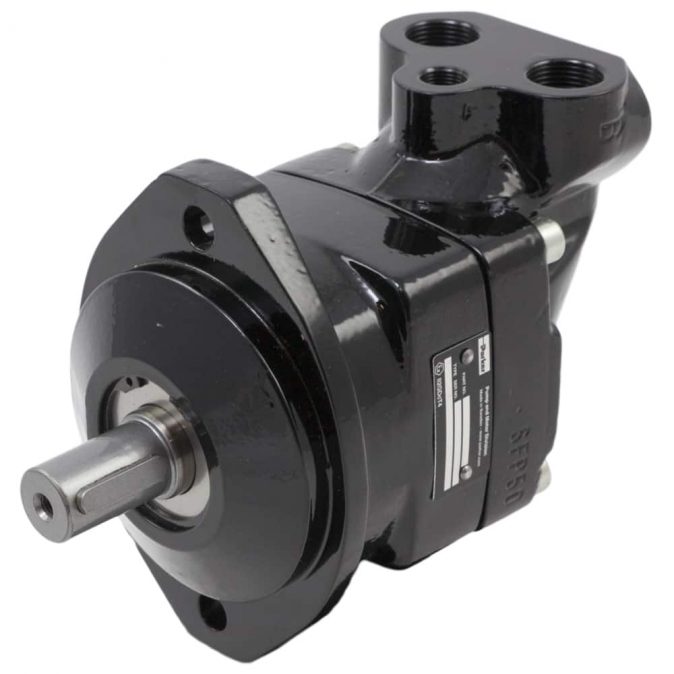

Typical Parker F11 Pump Series Overview
The Parker F11 is a bent axis, fixed displacement motor/pump. It can be used in numerous applications in both open and closed loop circuits. The F11 series is available in sizes; 5,6,10,12,14 and 19cc.
Max intermittent pressure up to 420 bar and continuous operating pressure up to 350 bar. = Thanks to low weigt pistons and a compact design of the rotating parts, the F11 tolerates very high speeds, up to 14000 rpm. – CEPTOP, ISO, SAW and SAE Versions. – The laminated piston ring offers important advantages such as unbeatable efficiency and thermal shock resistence. High allowable speeds and operating pressures means high output power. The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very robust design with long service life and, above all, proven reliability. The 40 ” angle between shaft and cylinder barrel allows for a very compact, lightweight motor/pump. Small envelope size and high power-to-weight ratio. The motor version as highly engineered valve plates for high speed and low noise. The pump version has highly engineered valve plates for increased self priming speed and low noise, available with left and right hand rotation. The F11’s has a simple and staight forward design with very few moving parts, making them very reliable motor/pumps. Our unique timing gear design sychronises shaft and cylinder barrel, making the F11 very tolerant to high ‘G’ forces and torsional vibrations. Heavy duty roller bearings permit substantial external axial and radial shaft loads.
